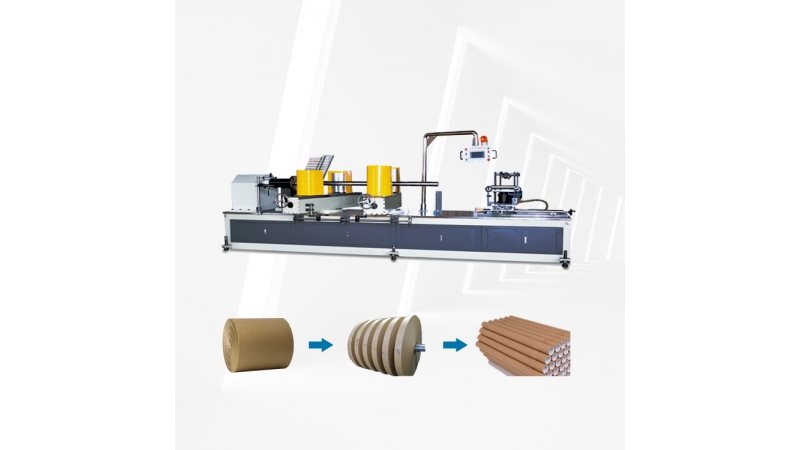

Paper Tube Making Machine

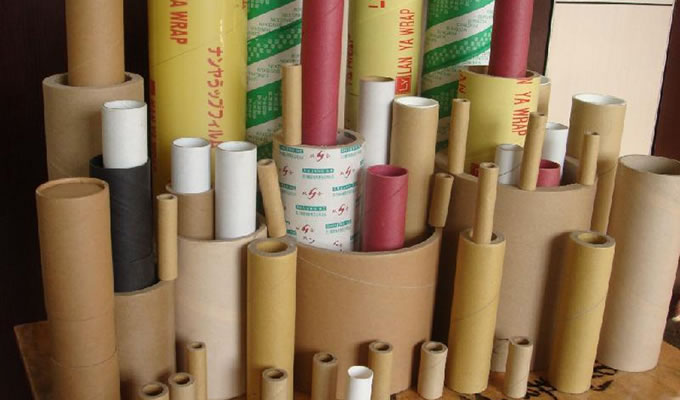

Our paper tube making machines take paperboard sheets and tightly roll them into tubes, while applying glue to keep the structure intact. Paper tubes are commonly used cardboard packages that can be used for a variety of shipping and storage purposes.

2 Head Paper Tube Making Machine, KS-60

Main parameters:
Paper layer: 2-7 layers
Inner core diameter: 15-60 mm
Thickness: 1-5 mm
Winding speed: 0-40 m/min
Cut-to-length mode: Numerical control
Winding head: Two heads

Inquiry Request
2 Head Paper Tube Making Machine, KS-100

Main parameter
Paper layer: 2-9 layers
Inner core diameter: 20-80 mm
Thickness: 1-5 mm
Winding speed: 0-25 m/min
Cut-to-length mode: Numerical control
Winding head: Two heads

Inquiry Request
4 Head Paper Tube Making Machine, KS -200

Main technical parameter
1.Tube diameter : Φ50-Φ200㎜
2.tube thickness: 2-15㎜
3.work speed: 0-15m／min(according the paper class and size
of the tube speed different)
4.paper cut length: 1-4m
5.motor power: main motor 11KW cutter 0.75KW
6.control way: inverter

Inquiry Request
4 Head Paper Tube Making Machine (Digital Control), KS-200

Main technical parameter
Paper layer: 3-25 layers
Inner core diameter: 30-200 mm
Thickness: 2-15 mm
Winding speed: 0-27 m/min
Cut-to-length mode: Numerical control
Winding head: Four heads

Inquiry Request
4 Head Paper Tube Making Machine, KS-300

Main parameter
1.Tube diameter: Φ50-Φ300㎜
2.tube thickness: 2-15㎜
3.work speed: 0-15m／min (according the paper class and
size of the tube speed different)
4.tube cut length: 1-5m
5.motor power: main machine 18KW cutter 0.75KW
(single knives)
6.control model: inverter

Inquiry Request
4 Head Paper Tube Making Machine (Digital Control), KS-300

Main technical parameter
1.Tube diameter: Φ50-Φ300㎜
2.tube thickness: 2-15㎜
3.work speed:0-15m／min(according the paper class and
size of the tube speed different)
4.paper cut length: 1-5m
5.motor power: main motor 18KW cutter 0.75KW
6.control way: inverter

Inquiry Request
4 Head Paper Tube Making Machine, KS-600

Main parameter
Paper layer: 5-52 layers
Inner core diameter: 305-605 mm
Thickness: 2-30 mm
Winding speed: 0-3 m/min
Cut-to-length mode: Numerical control
Winding head: Four heads

Inquiry Request
Paper Slitter Rewinder, Ks-1600 A

Main parameter
Web width: 1600 mm
Roll diameter: 1200 mm
Rewinding diameter: 1200 mm
Slitting width: >35 mm
Paper weight: 80-600 g
Number of cutters: 18 pcs

Inquiry Request
Paper Slitter Rewinder, Ks-1600 B

Technical parameter
Web width: 1600 mm
Roll diameter: 1200 mm
Rewinding diameter: 1200 mm
Slitting width: >35 mm
Paper weight: 80-600 g
Number of cutters: 18 pcs

Inquiry Request
