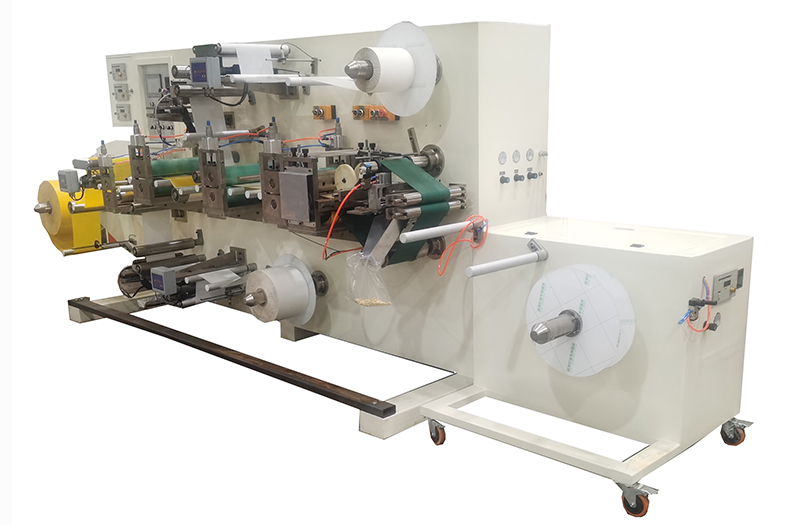

Double-sided Insect/Fly Glue Trap Machine

Model: HG818

Our insect/fly glue trap machine is an acclaimed professional production equipment that can streamline processes such as gluing, composite lamination, cutting, punching, and counting. The integration of this machine into the production process can drastically improve production efficiency and reduce labor costs.

This trap machine is designed for maximum convenience, promising that even those with limited production experience can get it running quickly. It is fast, efficient, and stable, with the capability to produce high-quality insect glue trap boards to satisfy a variety of customers.

Request a Quote

Watch Video

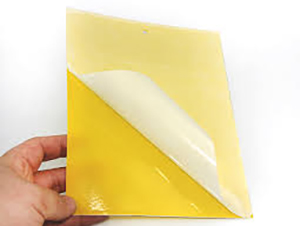

Finished insect glue trap

Technical parameters

Total power: 22kW
Maximum unwinding diameter: 800mm
Inner core diameter: 76mm
Effective maximum gluing width: 290mm
Gluing uniformity: ±5%
Production speed: 80-100 m/min
Rewinding precision: ±2mm
Range of gluing weight: 20-100g/m²
Air pressure source: 5-7kgf/cm²
Power supply for equipment: AC 380V
