Automatic Glue Trap Board Making Machine (Silicone Paper Laminate)

Model: HG898

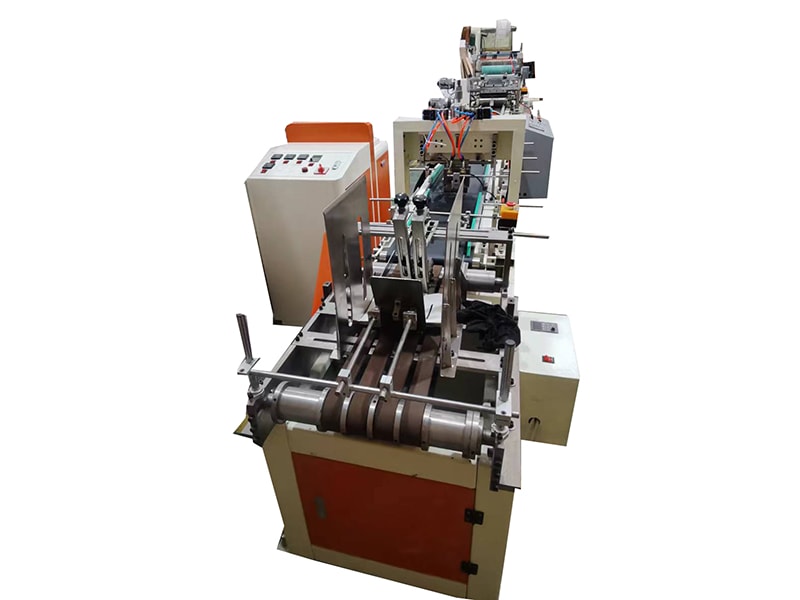

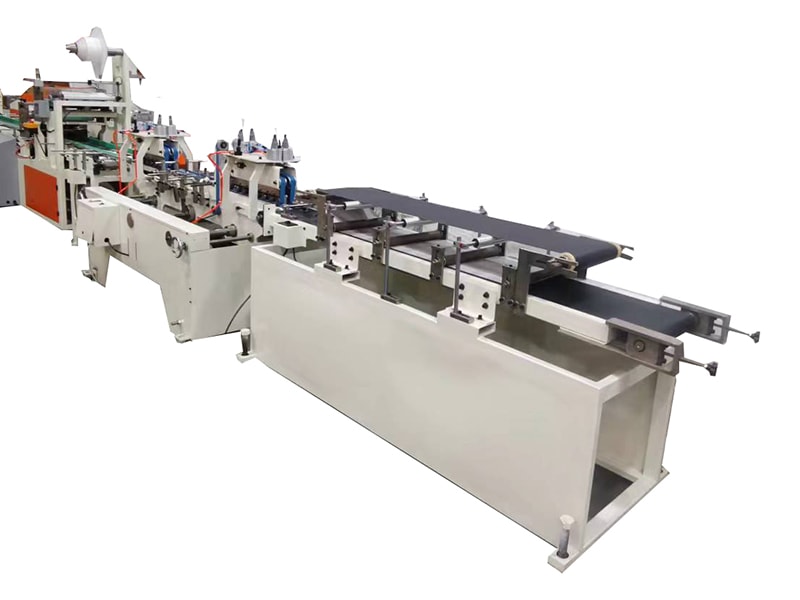

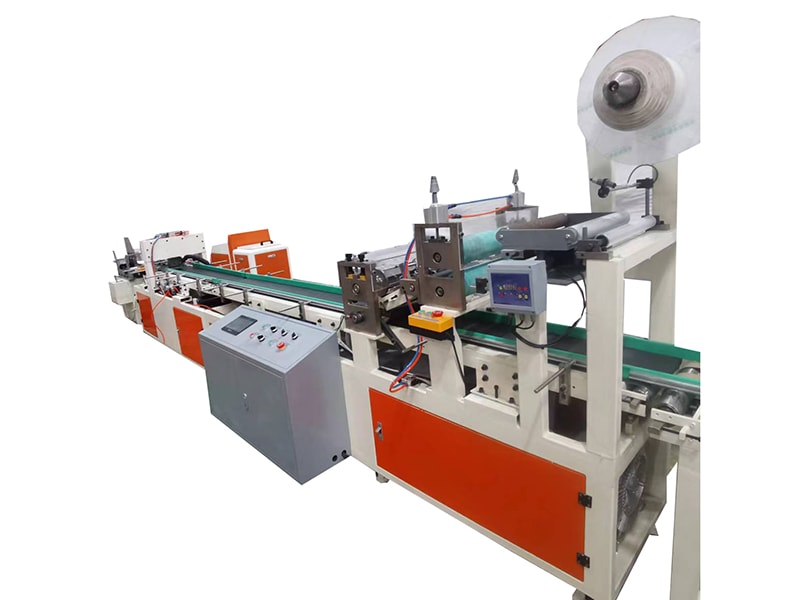

This automatic glue trap board making machine is used to glue and laminate release paper for the production of various products such as cockroach trap boards, insect trap boards, and white cardboard mouse glue traps. It is capable of functioning at a high speed, with maximum efficiency, and a high level of precise control. The trap board making machine is powered by a servo motor and PLC, as well as being easy to operate.

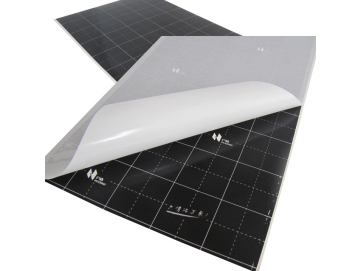

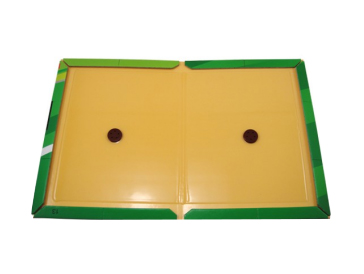

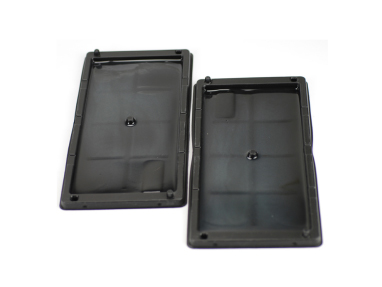

Finished glue trap boards

Technical parameters

Total power (glue gun included): 16kW
Maximum unwinding diameter of release paper: Ø700 mm (Ø400 mm-Ø500mm suggested)
Inner core diameter of release paper: Ø76mm
Effective maximum gluing width: 230 mm (customized width available)
Gluing uniformity: ±3%
Range of gluing weight: 20~500 g/㎡
Laminated length of release paper: < 400 mm or < 600 mm
Production speed: 0~ 80 sheets/min
Air pressure source: 6~8 kgf/cm²
Power supply: AC 380V
