Automatic Flute Laminating Machine
Our BZJ series automatic flute laminating machine is easy to use and features full automation for maximum production efficiency. The machine is designed to form laminated paperboard for A flute, B flute, E flute, F flute and 5-layer cardboard sheets. The recyclable gluing system ensures that no materials go to waste for both cost and time savings.
The adhesive application section of the machine is adaptable to evenly apply the right amount of glue in order for a clean and even attachment process.
Technical Parameters
| Model | |||
| Maximum paper size (W × L) | 1300×1100 | 1450×11000 | 1600×11000 |
| Minimum paper size (W × L) | 350×350 | 350×350 | 350×350 |
| Lamination precision | ≤±1.5 | ≤±1.50 | ≤±1.50 |
| Max mechanical speed | 100 | 100 | 100 |
| The total mechanical power | 12 | 1 2 | 13 |
| General machinery | 12.5×2.15×2.6 | 12.5×2.30×2.6 | 12.5×2.45×2.6 |
| Machine gross weight | 6.8 | 7.2 | 8.0 |
Details

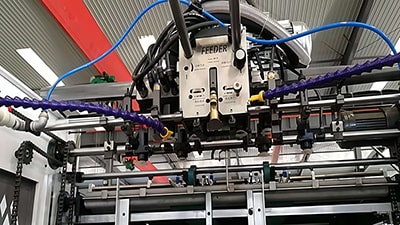

Base feeder part

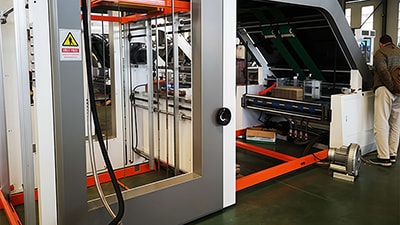

Bottom paper feeder part

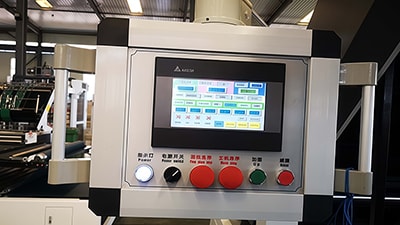

PLC control system

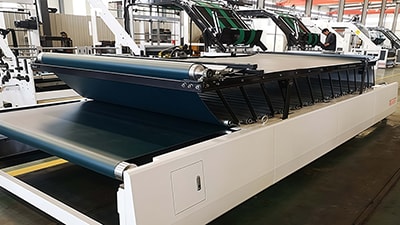

Laminator press part
