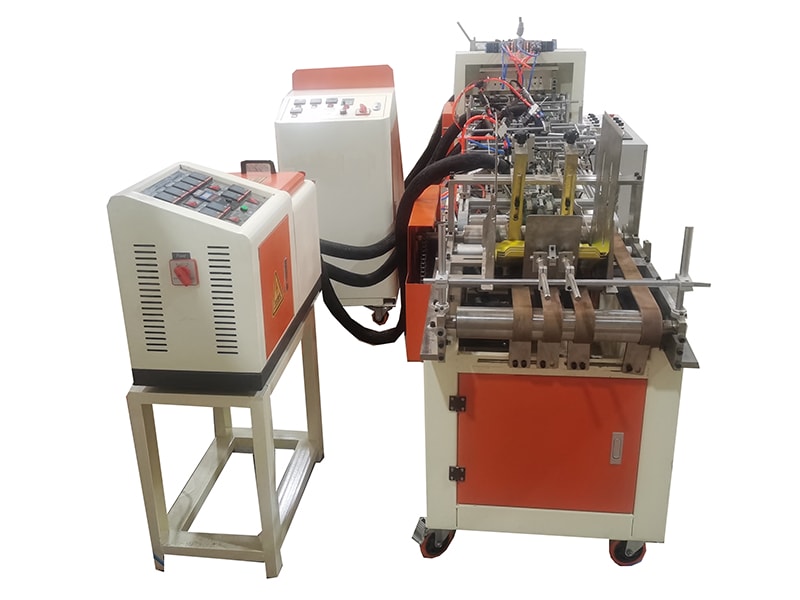

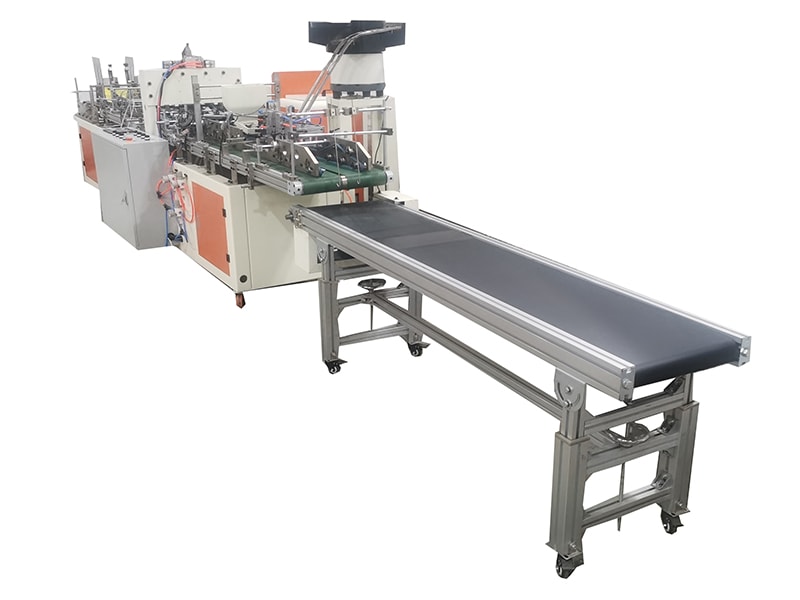

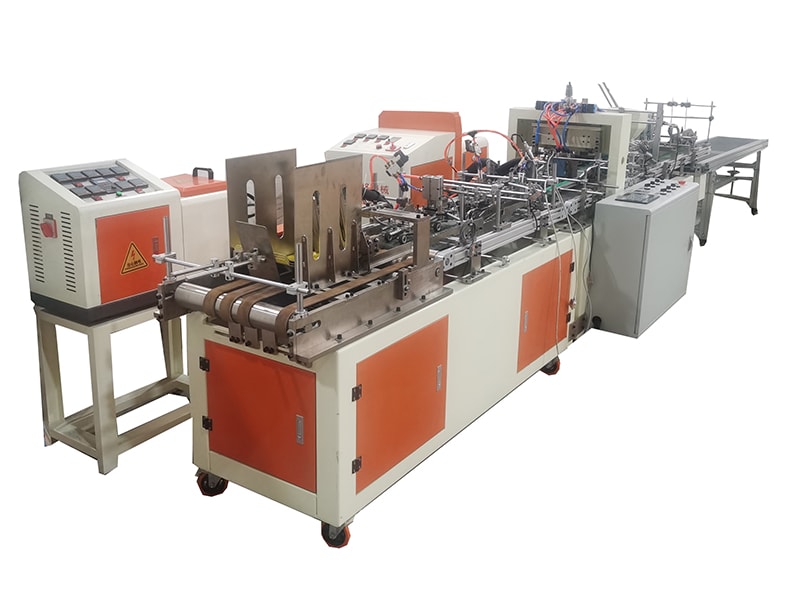

Fully Auto Mouse Glue Trap Machine
Model: HG858
This fully auto mouse glue trap machine is an incredibly efficient production tool that is used to manufacture mouse trap boards. It offers a wide variety of integrated functions, including automated paper feeding, folding, gluing, material sprinkling, clip placement and board assembly. Operation of this mouse glue trap machine is not only uncomplicated, but it also facilitates stable production, a factor that has earned it praise from a variety of customers.

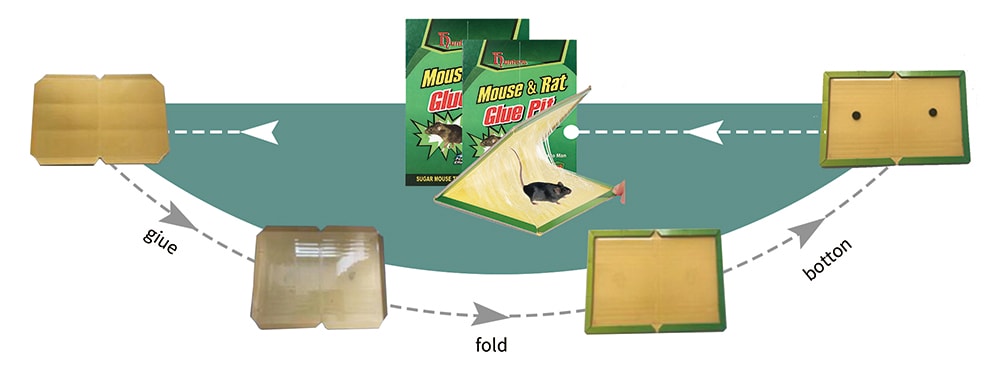

Applications of glue trap boards

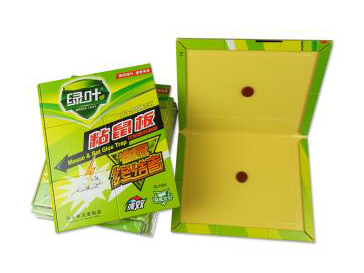

Mouse trap board
Technical parameters
| Area size and machine weight | Size (L*W) | 7mx2m |
| Weight | 950kg | |
| Working conditions | Operation power | 30kW |
| Voltage | AC 380v ±10% 50 Hz | |
| Air pressure/hose diameter | Min. 2-6kg/㎡, Ø8 | |
| Working environment | Clean workshop, well divided area for material and machines, extinguisher equipped | |
| Control method | Control panel | PLC control system + 7-inch touchscreen |
| Constant temperature heating | PID control | |
| Size range | Trap width | 170mm-300mm |
| Gluing width | 130mm-260mm | |
| Tolerance | ±0.5mm | |
| Production speed | Thin board | 4800+ sheet/h |
| Thick board | 3600+ sheet/h | |
| Configurations | Control system | PLC: Yonghong |
| Touchscreen: Fanyi | ||
| Drive and folding | Servo motor: Huichuan | |
| Automatic feeding | 400W motor + frequency converter（(Yatai)） | |
| Others | Most machine parts are standardized. | |
| 1.5kW Air compressor equipped by the user | ||
