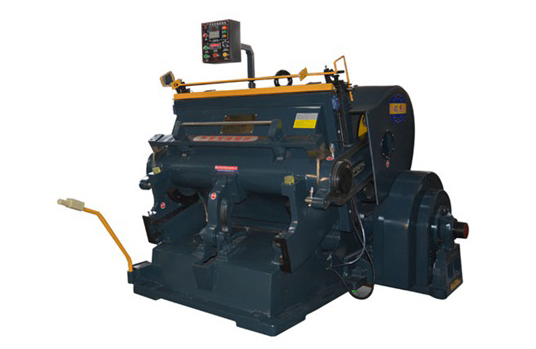

Clamshell Die Cutter

Our clamshell die cutter is a hand fed machine that performs die cutting and creasing to create the clamshell package. The equipment can work with materials such as paper, cardboard, plastic sheet and leather.

Request a Quote

Watch Video

Advantages

Our die cutting machine uses a centralized lubrication pump system for minimal maintenance
It adopts name brand electrical components
Strengthened construction ensures smooth operation and long service life
The active plate frame makes it convenient to install die cutting rules and adjust pressure, producing beautiful products.

Technological Parameters

Model	Inner Chase Size	Speed	Max.Rule Length	Motor Power	Machine Weight	Overall Dimensions
PYQ401C	750×520mm	25	15m	2.2kw	2000kg	2300×1500×1500mm
PYQ203D	930×670mm	23±3	25m	3.0 kw	3000kg	1670 × 1670 × 1630 mm
ML1100	1100×800mm	20±2	30m	5.5kw	4500kg	2450×2100×1900mm
ML1200	1200×820mm	20±2	32m	5.5kw	5000kg	2500×2100×1900mm
ML1300	1300×920mm	15±2	40m	7.5kw	6000kg	2550×2100×1950mm
ML1400	1400×1000mm	15±2	45m	7.5kw	6500kg	2650×2100×2000mm
ML1500	1500×1050mm	14±2	45m	7.5kw	7000kg	2700×2100×2150mm
ML1600	1600×1250mm	13±2	50m	11kw	11500kg	2800×2250×2300mm
ML1800	1800×1280mm	13±2	60m	15kw	13000kg	3000×2250×2350mm
